In Australia’s electricity system, more and more energy from sunlight and wind is being “spilled” – or not converted to electricity.

In the last year, the amount of renewable energy spilled was roughly equivalent to the annual consumption of 750,000 typical households, or three months of consumption for the state of South Australia. Some have attributed these dynamics as being driven by a “solar power glut”.

At face value, this seems like a terrible waste of renewable energy, even more so in the face of a slump in rate of renewable energy growth and the pressing need to reduce emissions.

But the story is more complex. Such spillage, also known as curtailment, is an expected and efficient feature of renewable energy systems.

But the story is more complex. Such spillage, also known as curtailment, is also an expected and efficient feature of renewable energy systems.

The energy market operator defines spilled energy as “energy from variable renewable energy resources that could be generated but is unable to be delivered”.

It represents energy that could have been converted to electricity, but wasn’t. The unconverted energy simply remains in the environment.

It is typically broken down into two categories, based on the cause of the spillage. Firstly, there is curtailment based on the operation of the transmission network. Power generation can be constrained due to operation limits or congestion in the network, resulting in spilled energy. This can occur when there are too many generators in the same area, trying to send power through the same transmission line. Secondly, a generator may reduce output due to low market prices, which the operator calls “economic spill” also known as “economic curtailment”.

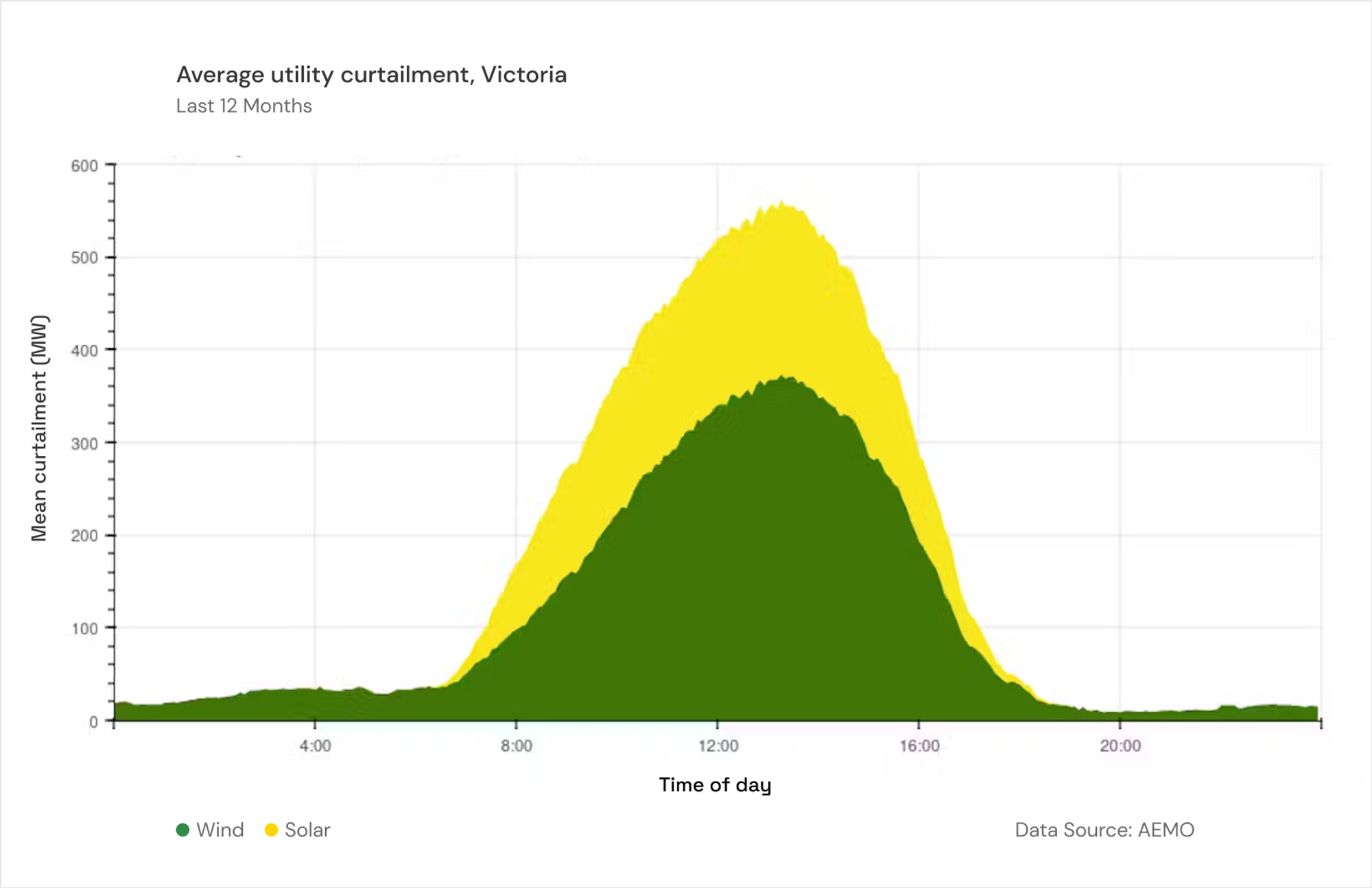

The amount of this curtailment has been growing in recent years. In the last 12 months this curtailed energy represents more than 8.5% of the total potential. This varies considerably by region, with as much as 12% spilled in Victoria in the last year.

It doesn’t make economic sense to try and utilise every renewable electron. The cost to store, transmit, and utilise every single watt of power from a renewable energy source would be exorbitant.

For example, we don’t build additional highway lanes to accommodate traffic for the busiest single hour on an Easter weekend. In a similar way, it doesn’t make sense to build transmission to ensure every single watt is transferred. This would be expensive and result in severely underused infrastructure. For the more common weather conditions – when it isn’t blowing a gale or in the middle of a sunny day – the network would be considerably oversized.

Studies that model energy systems primarily powered by renewables commonly find it is more economically efficient to build additional renewable capacity, and spill some generation when there is an abundance of supply above demand.

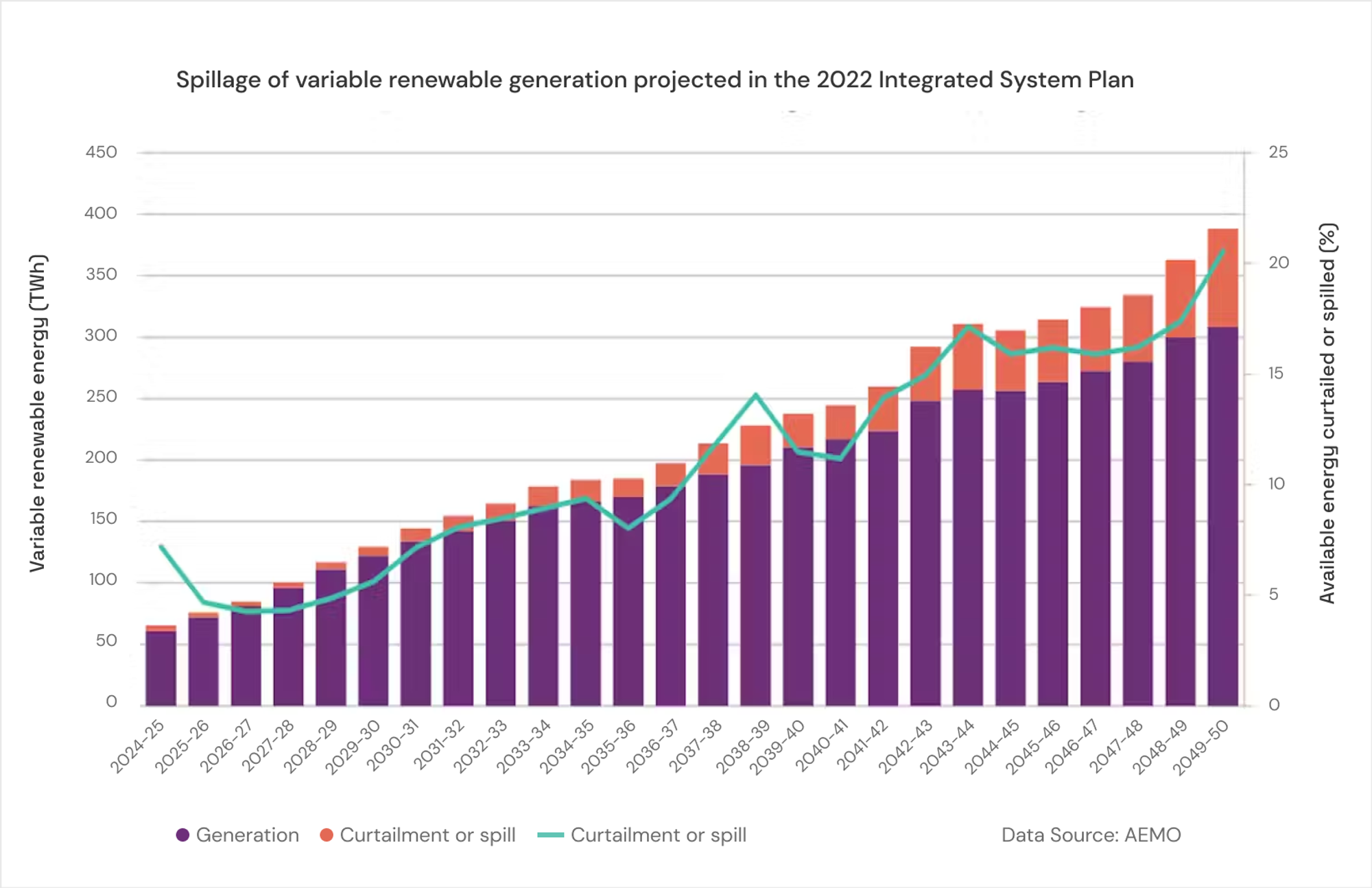

The Integrated System Plan, a roadmap for the electricity system prepared by Australia’s energy market operator, projects an increase in renewable energy curtailment in the best case scenario. Approximately 20% of renewable generation is expected to be spilled by 2050. This is roughly equivalent to the current consumption of the state of New South Wales.

On one level, this shouldn’t be surprising.

Households often buy larger solar PV systems relative to their consumption. And it’s now common practice to install solar panels in excess of the capacity of the inverter to convert the power and send it to the home or grid. This is usually done to maximise use of the inverter and exports across a limited connection.

These two examples are broadly analogous to what happens on the grid, with economic curtailment and transmission-based curtailment.

At a system-wide level, current levels of spillage are above what was expected. The integrated system plan suggests curtailment rates of around 5% might be considered appropriate for today’s penetration of renewable energy, compared with today's level of around 8.5%. This difference relates to how things are working in the real world, including how rules around accessing transmission capacity currently work.

A recent discussion paper from the Australian Energy Market Commission highlights this mismatch, and suggests that “in the absence of reform, actual levels of curtailment are likely to exceed the levels forecast in the ISP”, pointing to issues with the current arrangements for generators accessing transmission capacity.

They imply the current system is resulting in higher than expected congestion, leading to increased costs for consumers and potentially unnecessary transmission builds. Managing transmission access remains a challenge for developers building new renewables projects.

Australia’s fleet of coal-fired power generators is another key driver of economic curtailment. While coal generators are more flexible than commonly understood, they have their limits. Specifically, they can only reduce operation down so far, to so-called minimum generation levels. Below these levels, they have to turn off completely, which is a costly exercise.

Coal generators therefore prefer to continue to generate, even at negative prices, rather than completely shut down. As a consequence, and to avoid paying to generate, renewable energy is spilled, rather than coal being shut down. In the context of the energy transition and the need to reduce emissions we actually have a glut of coal, rather than renewables.

The curtailment story is complex. On the one hand it is an expected phenomenon, and one we should get used to as we transition more towards a renewable-dominated electricity system. We should, however, be encouraging consumers to make use of this abundance of renewable generation where possible, such as by shifting their usage to the middle of the day.

On the other hand, some of these levels of curtailment are beyond what is expected. That’s in part because we still have an excess of coal power. We separately need to ensure grid congestion is properly managed, and access arrangements are reformed, to prevent unnecessary costs to consumers and renewable developers alike.
